Applications that are connected to services often include connection strings that can be leaked if they are not protected sufficiently. In the following paragraphs, we will go through the process of enumerating and exploiting applications that are connected to other services in order to extend their functionality. This can help us collect information and move laterally or escalate our privileges during penetration testing.
ELF Executable Examination
The octopus_checker binary is found on a remote machine during the testing. Running the application locally reveals that it connects to database instances in order to verify that they are available.
sasorirose@htb[/htb]$ ./octopus_checker
Program had started..
Attempting Connection
Connecting ...
The driver reported the following diagnostics whilst running SQLDriverConnect
01000:1:0:[unixODBC][Driver Manager]Can't open lib 'ODBC Driver 17 for SQL Server' : file not found
connectedThe binary probably connects using a SQL connection string that contains credentials. Using tools like PEDA (Python Exploit Development Assistance for GDB) we can further examine the file. This is an extension of the standard GNU Debugger (GDB), which is used for debugging C and C++ programs. GDB is a command line tool that lets you step through the code, set breakpoints, and examine and change variables. Running the following command we can execute the binary through it.
sasorirose@htb[/htb]$ gdb ./octopus_checker
GNU gdb (Debian 9.2-1) 9.2
Copyright (C) 2020 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.
Type "show copying" and "show warranty" for details.
This GDB was configured as "x86_64-linux-gnu".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
Once the binary is loaded, we set the disassembly-flavor to define the display style of the code, and we proceed with disassembling the main function of the program.
gdb-peda$ set disassembly-flavor intel
gdb-peda$ disas main
Dump of assembler code for function main:
0x0000555555555456 <+0>: endbr64
0x000055555555545a <+4>: push rbp
0x000055555555545b <+5>: mov rbp,rsp
0x0000555555555625 <+463>: call 0x5555555551a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
0x000055555555562a <+468>: mov rdx,rax
0x000055555555562d <+471>: mov rax,QWORD PTR [rip+0x299c] # 0x555555557fd0
0x0000555555555634 <+478>: mov rsi,rax
0x0000555555555637 <+481>: mov rdi,rdx
0x000055555555563a <+484>: call 0x5555555551c0 <_ZNSolsEPFRSoS_E@plt>
0x000055555555563f <+489>: mov rbx,QWORD PTR [rbp-0x4a8]
0x0000555555555646 <+496>: lea rax,[rbp-0x4b7]
0x000055555555564d <+503>: mov rdi,rax
0x0000555555555650 <+506>: call 0x555555555220 <_ZNSaIcEC1Ev@plt>
0x0000555555555655 <+511>: lea rdx,[rbp-0x4b7]
0x000055555555565c <+518>: lea rax,[rbp-0x4a0]
0x0000555555555663 <+525>: lea rsi,[rip+0xa34] # 0x55555555609e
0x000055555555566a <+532>: mov rdi,rax
0x000055555555566d <+535>: call 0x5555555551f0 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEC1EPKcRKS3_@plt>
0x0000555555555672 <+540>: lea rax,[rbp-0x4a0]
0x0000555555555679 <+547>: mov edx,0x2
0x000055555555567e <+552>: mov rsi,rbx
0x0000555555555681 <+555>: mov rdi,rax
0x0000555555555684 <+558>: call 0x555555555329 <_Z13extract_errorNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEEPvs>
0x0000555555555689 <+563>: lea rax,[rbp-0x4a0]
0x0000555555555690 <+570>: mov rdi,rax
0x0000555555555693 <+573>: call 0x555555555160 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEED1Ev@plt>
0x0000555555555698 <+578>: lea rax,[rbp-0x4b7]
0x000055555555569f <+585>: mov rdi,rax
0x00005555555556a2 <+588>: call 0x5555555551d0 <_ZNSaIcED1Ev@plt>
0x00005555555556a7 <+593>: cmp WORD PTR [rbp-0x4b2],0x0
0x0000555555555761 <+779>: mov rbx,QWORD PTR [rbp-0x8]
0x0000555555555765 <+783>: leave
0x0000555555555766 <+784>: ret

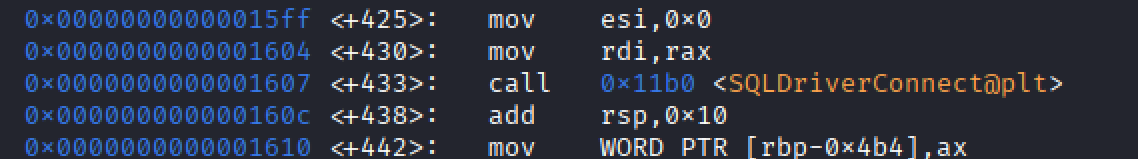

End of assembler dump. This reveals several call instructions that point to addresses containing strings. They appear to be sections of a SQL connection string, but the sections are not in order, and the endianness entails that the string text is reversed. Endianness defines the order that the bytes are read in different architectures. Further down the function, we see a call to SQLDriverConnect.
0x00005555555555ff <+425>: mov esi,0x0
0x0000555555555604 <+430>: mov rdi,rax
0x0000555555555607 <+433>: call 0x5555555551b0
0x000055555555560c <+438>: add rsp,0x10
0x0000555555555610 <+442>: mov WORD PTR [rbp-0x4b4],ax
Adding a breakpoint at this address and running the program once again, reveals a SQL connection string in the RDX register address, containing the credentials for a local database instance.
gdb-peda$ b *0x5555555551b0
Breakpoint 1 at 0x5555555551b0
gdb-peda$ run
Starting program: /htb/rollout/octopus_checker
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
Program had started..
Attempting Connection
[----------------------------------registers-----------------------------------]
RAX: 0x55555556c4f0 --> 0x4b5a ('ZK')
RBX: 0x0
RCX: 0xfffffffd
RDX: 0x7fffffffda70 ("DRIVER={ODBC Driver 17 for SQL Server};SERVER=localhost, 1401;UID=username;PWD=password;")
RSI: 0x0
RDI: 0x55555556c4f0 --> 0x4b5a ('ZK')
Apart from trying to connect to the MS SQL service, penetration testers can also check if the password is reusable from users of the same network.
DLL File Examination
A DLL file is a Dynamically Linked Library and it contains code that is called from other programs while they are running. The MultimasterAPI.dll binary is found on a remote machine during the enumeration process. Examination of the file reveals that this is a .Net assembly.
C:\> Get-FileMetaData .\MultimasterAPI.dll
M .NETFramework,Version=v4.6.1 TFrameworkDisplayName.NET Framework 4.6.1 api/getColleagues ! htt
p://localhost:8081*POST Ò^ øJ ø, RSDSœ»¡ÍuqœK£"Y¿bˆ C:\Users\Hazard\Desktop\Stuff\Multimast

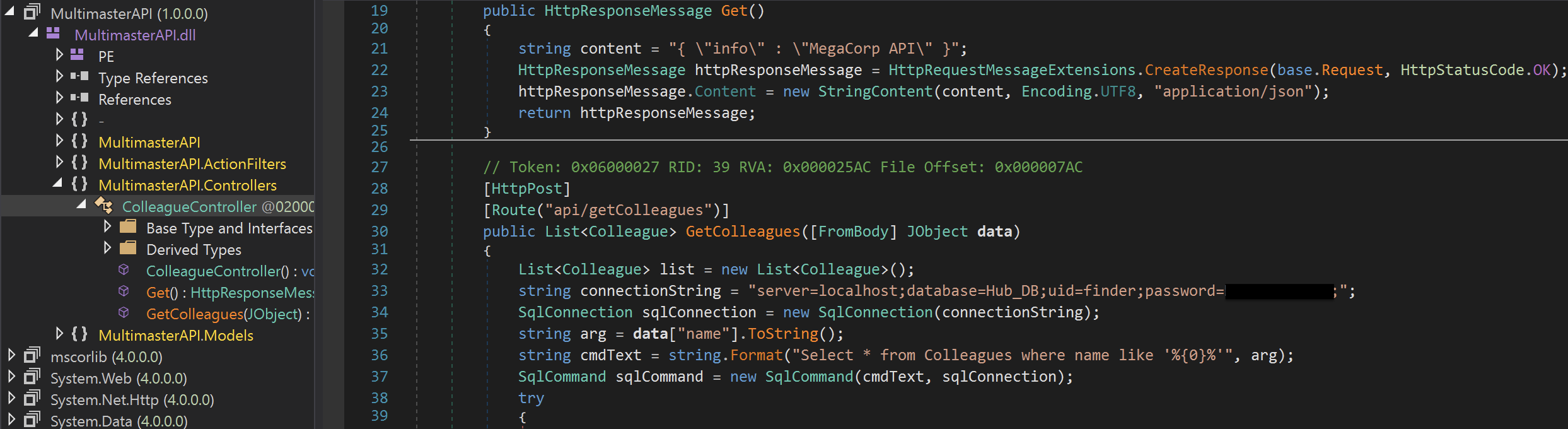

Using the debugger and .NET assembly editor dnSpy, we can view the source code directly. This tool allows reading, editing, and debugging the source code of a .NET assembly (C# and Visual Basic). Inspection of MultimasterAPI.Controllers -> ColleagueController reveals a database connection string containing the password.
Apart from trying to connect to the MS SQL service, attacks like password spraying can also be used to test the security of other services.
Questions:
What credentials were found for the local database instance while debugging the octopus_checker binary? (Format username:password)
htb-student@htb:~$ gdb ./octopus_checker
GNU gdb (Ubuntu 9.2-0ubuntu1~20.04.1) 9.2
Copyright (C) 2020 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.
Type "show copying" and "show warranty" for details.
This GDB was configured as "x86_64-linux-gnu".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
0x00000000000014b6 <+96>: mov rax,QWORD PTR [rbp-0x4b0]
0x00000000000014bd <+103>: mov ecx,0x0
0x00000000000014c2 <+108>: mov edx,0x3
0x00000000000014c7 <+113>: mov esi,0xc8
0x00000000000014cc <+118>: mov rdi,rax
0x00000000000014cf <+121>: call 0x1230
0x00000000000014d4 <+126>: mov rax,QWORD PTR [rbp-0x4b0]
0x00000000000014db <+133>: lea rdx,[rbp-0x4a8]
0x00000000000014e2 <+140>: mov rsi,rax
0x00000000000014e5 <+143>: mov edi,0x2
0x00000000000014ea <+148>: call 0x1170
0x00000000000014ef <+153>: lea rsi,[rip+0xb81] # 0x2077
0x00000000000014f6 <+160>: lea rdi,[rip+0x2b43] # 0x4040 <_ZSt4cout@@GLIBCXX_3.4>
0x00000000000014fd <+167>: call 0x11a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
0x0000000000001502 <+172>: mov rdx,rax
0x0000000000001505 <+175>: mov rax,QWORD PTR [rip+0x2ac4] # 0x3fd0
0x000000000000150c <+182>: mov rsi,rax
0x000000000000150f <+185>: mov rdi,rdx
0x0000000000001512 <+188>: call 0x11c0 <_ZNSolsEPFRSoS_E@plt>

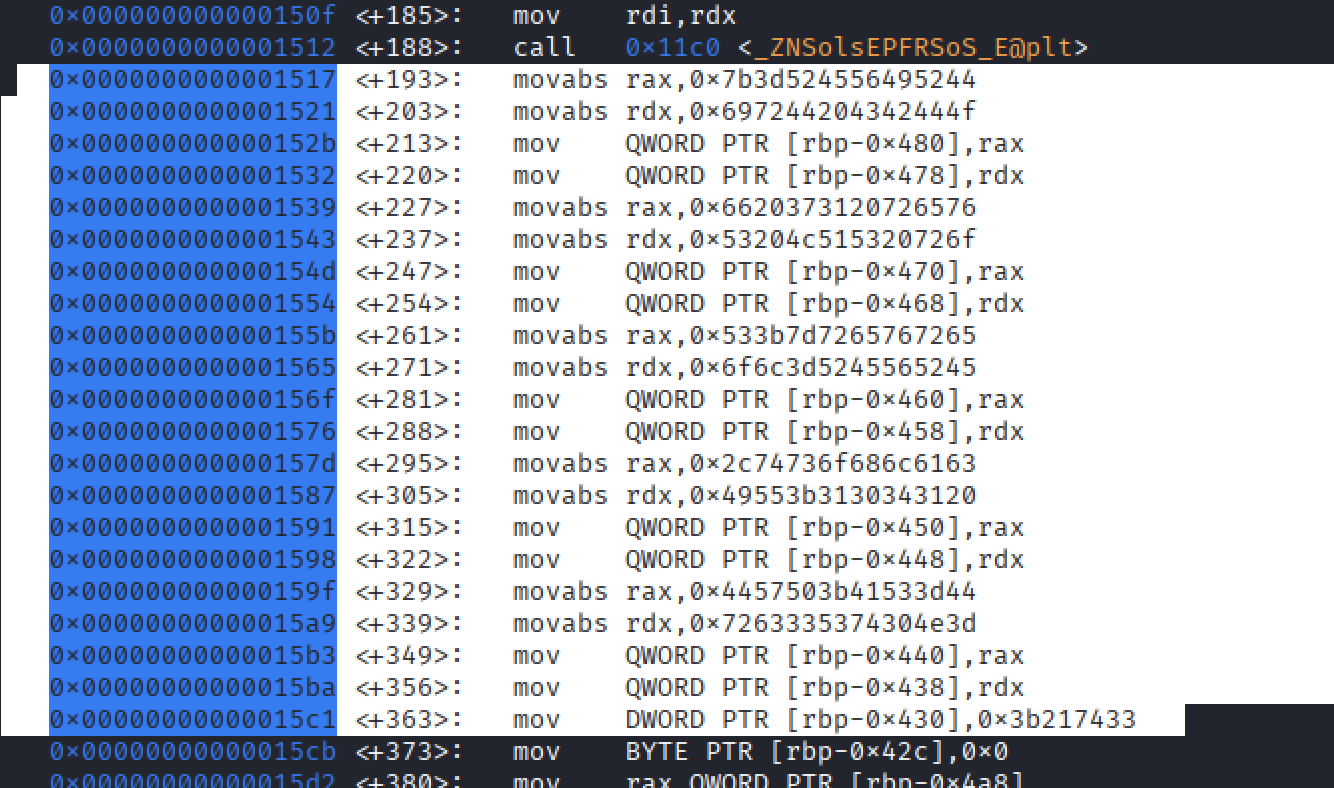

0x0000000000001517 <+193>: movabs rax,0x7b3d524556495244
0x0000000000001521 <+203>: movabs rdx,0x697244204342444f
0x000000000000152b <+213>: mov QWORD PTR [rbp-0x480],rax
0x0000000000001532 <+220>: mov QWORD PTR [rbp-0x478],rdx
0x0000000000001539 <+227>: movabs rax,0x6620373120726576
0x0000000000001543 <+237>: movabs rdx,0x53204c515320726f
0x000000000000154d <+247>: mov QWORD PTR [rbp-0x470],rax
0x0000000000001554 <+254>: mov QWORD PTR [rbp-0x468],rdx
0x000000000000155b <+261>: movabs rax,0x533b7d7265767265
0x0000000000001565 <+271>: movabs rdx,0x6f6c3d5245565245
0x000000000000156f <+281>: mov QWORD PTR [rbp-0x460],rax
0x0000000000001576 <+288>: mov QWORD PTR [rbp-0x458],rdx
0x000000000000157d <+295>: movabs rax,0x2c74736f686c6163
0x0000000000001587 <+305>: movabs rdx,0x49553b3130343120
0x0000000000001591 <+315>: mov QWORD PTR [rbp-0x450],rax
0x0000000000001598 <+322>: mov QWORD PTR [rbp-0x448],rdx
0x000000000000159f <+329>: movabs rax,0x4457503b41533d44
0x00000000000015a9 <+339>: movabs rdx,0x7263335374304e3d
0x00000000000015b3 <+349>: mov QWORD PTR [rbp-0x440],rax
0x00000000000015ba <+356>: mov QWORD PTR [rbp-0x438],rdx
0x00000000000015c1 <+363>: mov DWORD PTR [rbp-0x430],0x3b217433
0x00000000000015cb <+373>: mov BYTE PTR [rbp-0x42c],0x0
0x00000000000015d2 <+380>: mov rax,QWORD PTR [rbp-0x4a8]
0x00000000000015d9 <+387>: lea rsi,[rbp-0x420]
0x00000000000015e0 <+394>: lea rdx,[rbp-0x480]
0x00000000000015e7 <+401>: push 0x0
0x00000000000015e9 <+403>: lea rcx,[rbp-0x4b6]
0x00000000000015f0 <+410>: push rcx
0x00000000000015f1 <+411>: mov r9d,0x400
0x00000000000015f7 <+417>: mov r8,rsi
0x00000000000015fa <+420>: mov ecx,0xfffffffd
0x00000000000015ff <+425>: mov esi,0x0
0x0000000000001604 <+430>: mov rdi,rax
0x0000000000001607 <+433>: call 0x11b0
0x000000000000160c <+438>: add rsp,0x10
0x0000000000001610 <+442>: mov WORD PTR [rbp-0x4b4],ax
0x0000000000001617 <+449>: lea rsi,[rip+0xa70] # 0x208e
0x000000000000161e <+456>: lea rdi,[rip+0x2a1b] # 0x4040 <_ZSt4cout@@GLIBCXX_3.4>
0x0000000000001625 <+463>: call 0x11a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
0x000000000000162a <+468>: mov rdx,rax
0x000000000000162d <+471>: mov rax,QWORD PTR [rip+0x299c] # 0x3fd0
0x0000000000001634 <+478>: mov rsi,rax
0x0000000000001637 <+481>: mov rdi,rdx
0x000000000000163a <+484>: call 0x11c0 <_ZNSolsEPFRSoS_E@plt>
0x000000000000163f <+489>: mov rbx,QWORD PTR [rbp-0x4a8]
0x0000000000001646 <+496>: lea rax,[rbp-0x4b7]
0x000000000000164d <+503>: mov rdi,rax
0x0000000000001650 <+506>: call 0x1220 <_ZNSaIcEC1Ev@plt>
0x0000000000001655 <+511>: lea rdx,[rbp-0x4b7]
0x000000000000165c <+518>: lea rax,[rbp-0x4a0]
0x0000000000001663 <+525>: lea rsi,[rip+0xa34] # 0x209e
0x000000000000166a <+532>: mov rdi,rax
0x000000000000166d <+535>: call 0x11f0 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEC1EPKcRKS3_@plt>
0x0000000000001672 <+540>: lea rax,[rbp-0x4a0]
0x0000000000001679 <+547>: mov edx,0x2
0x000000000000167e <+552>: mov rsi,rbx
0x0000000000001681 <+555>: mov rdi,rax
0x0000000000001684 <+558>: call 0x1329 <_Z13extract_errorNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEEPvs>
0x0000000000001689 <+563>: lea rax,[rbp-0x4a0]
0x0000000000001690 <+570>: mov rdi,rax
0x0000000000001693 <+573>: call 0x1160 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEED1Ev@plt>
0x0000000000001698 <+578>: lea rax,[rbp-0x4b7]
0x000000000000169f <+585>: mov rdi,rax
0x00000000000016a2 <+588>: call 0x11d0 <_ZNSaIcED1Ev@plt>
0x00000000000016a7 <+593>: cmp WORD PTR [rbp-0x4b2],0x0
0x00000000000016af <+601>: je 0x16e5
0x00000000000016b1 <+603>: cmp WORD PTR [rbp-0x4b2],0x1
0x00000000000016b9 <+611>: je 0x16e5
0x00000000000016bb <+613>: lea rsi,[rip+0x9ed] # 0x20af
0x00000000000016c2 <+620>: lea rdi,[rip+0x2977] # 0x4040 <_ZSt4cout@@GLIBCXX_3.4>
0x00000000000016c9 <+627>: call 0x11a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
0x00000000000016ce <+632>: mov rdx,rax
0x00000000000016d1 <+635>: mov rax,QWORD PTR [rip+0x28f8] # 0x3fd0
0x00000000000016d8 <+642>: mov rsi,rax
0x00000000000016db <+645>: mov rdi,rdx
0x00000000000016de <+648>: call 0x11c0 <_ZNSolsEPFRSoS_E@plt>
0x00000000000016e3 <+653>: jmp 0x170d
0x00000000000016e5 <+655>: lea rsi,[rip+0x9d3] # 0x20bf
0x00000000000016ec <+662>: lea rdi,[rip+0x294d] # 0x4040 <_ZSt4cout@@GLIBCXX_3.4>
0x00000000000016f3 <+669>: call 0x11a0 <_ZStlsISt11char_traitsIcEERSt13basic_ostreamIcT_ES5_PKc@plt>
0x00000000000016f8 <+674>: mov rdx,rax
0x00000000000016fb <+677>: mov rax,QWORD PTR [rip+0x28ce] # 0x3fd0
0x0000000000001702 <+684>: mov rsi,rax
0x0000000000001705 <+687>: mov rdi,rdx
0x0000000000001708 <+690>: call 0x11c0 <_ZNSolsEPFRSoS_E@plt>
0x000000000000170d <+695>: mov eax,0x0
0x0000000000001712 <+700>: mov rcx,QWORD PTR [rbp-0x18]
0x0000000000001716 <+704>: xor rcx,QWORD PTR fs:0x28
0x000000000000171f <+713>: je 0x1761
0x0000000000001721 <+715>: jmp 0x175c
0x0000000000001723 <+717>: endbr64
0x0000000000001727 <+721>: mov rbx,rax
0x000000000000172a <+724>: lea rax,[rbp-0x4a0]
0x0000000000001731 <+731>: mov rdi,rax
0x0000000000001734 <+734>: call 0x1160 <_ZNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEED1Ev@plt>
0x0000000000001739 <+739>: jmp 0x1742
0x000000000000173b <+741>: endbr64
0x000000000000173f <+745>: mov rbx,rax
0x0000000000001742 <+748>: lea rax,[rbp-0x4b7]
0x0000000000001749 <+755>: mov rdi,rax
0x000000000000174c <+758>: call 0x11d0 <_ZNSaIcED1Ev@plt>
0x0000000000001751 <+763>: mov rax,rbx
0x0000000000001754 <+766>: mov rdi,rax
0x0000000000001757 <+769>: call 0x1210 <_Unwind_Resume@plt>
0x000000000000175c <+774>: call 0x11e0 <__stack_chk_fail@plt>
0x0000000000001761 <+779>: mov rbx,QWORD PTR [rbp-0x8]
0x0000000000001765 <+783>: leave
0x0000000000001766 <+784>: ret
End of assembler dump.
gdb-peda$
Step 1: Find the Database Connection Function
If you scan down the assembly, you'll see a very interesting function call at offset <+433>:
SQLDriverConnect is a standard function used to connect to SQL databases. To work, it requires a connection string (which usually contains the server IP, username, and password). The instructions right before this call are responsible for building that string in memory.
Step 2: Spot the Hardcoded Data
Look at the block of instructions starting at <+193> down to <+363>. You will see a bunch of movabs instructions pushing large hexadecimal values into the stack ([rbp-0x...]).
This is the program taking a long, hardcoded text string and writing it into memory in 8-byte chunks.
Step 3: Decode the Hex (The Little Endian Trick)
To read these strings, we have to convert the hex to ASCII text. However, x86 architecture uses Little Endian, which means it stores bytes in reverse order.
Let's decode the very first line as an example:
- The Hex: 0x7b3d524556495244
- Split into bytes: 7b 3d 52 45 56 49 52 44
- Reverse the order: 44 52 49 56 45 52 3d 7b
- Convert to ASCII text: D R I V E R = {
Step 4: Assemble the Puzzle
If we apply that same reverse-and-convert trick to the entire block of movabs instructions, here is what the program is spelling out:
- 0x7b3d524556495244 -> DRIVER={
- 0x697244204342444f -> ODBC Dri
- 0x6620373120726576 -> ver 17 f
- 0x53204c515320726f -> or SQL S
- 0x533b7d7265767265 -> erver};S
- 0x6f6c3d5245565245 -> ERVER=lo
- 0x2c74736f686c6163 -> calhost,
- 0x49553b3130343120 -> 1401;UI
- 0x4457503b41533d44 -> D=SA;PWD
- 0x7263335374304e3d -> =N0tS3cr
- 0x3b217433 -> 3t!;
When you squish all of those pieces together, you get the full, hardcoded connection string: DRIVER={ODBC Driver 17 for SQL Server};SERVER=localhost, 1401;UID=SA;PWD=N0tS3cr3t!;
Answer:SA:N0tS3cr3t!
